Image Panel
The image panel allows you to control the image size by setting up the region of interest (ROI) of the camera.
Use ROI
Select a subimage (ROI - Region of interest) with the given width and height
Fill in a valid widht & height and press the right arrow button
for
selecting the ROI. You cannot select an X/Y-offset, the ROI will be

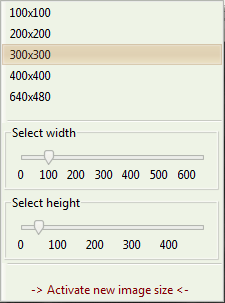

read out centered from the CCD. You can use your own set of ROIs
which will be available as popup menu if you right-click in the
width or height field:
See the customROI entry in the FireCapture.ini Configuration for setup your ROI sizes in the menu.
Max
Switch to the maximum image size the camera provides
If this one is selected the ROI fields will be disabled, so you must select "Use ROI" first before manual selecting a ROI
